    KS-W102 Automatic cable cutting and stripping machine

KS-W102 Automatic cable cutting and stripping machine

  • Product Category: Wire Processing Equipment
  • Manufacturer: KINGSING
  • Code:

    KS-W102

  • Price: Contact us

    • Warranty 12 months
    • Ability to supply: 30 machines / order
    • Delivery
    • Caring thoughtful
    • 24/7 support

Specifications of KS-W102 Automatic cable cutting and stripping machine:

  1. Display:7 inch LCD with English Menu
  2. Suitable cable:2 core and 3 core power cord
  3. Suitable cable Diameter:4-10mm
  4. Cutting length: 9999 mm
  5. Outer jacket stripping length:30-100mm
  6. Stripping speed:400-600Pcs/h
  7. Stripping accuracy:± (0.002mm× Stripping Length)
  8. Cutting accuracy:± (0.002mm× Cutting Length)
  9. Memory function: Max. 40 group of programs
  10. Power rating: 600W
  11. Power supply:AC220V/110V 50/60HZ
  12. Net weight: 101Kg
  13. Air pressure: 0.4~0.6Mpa
  14. Dimensions: 800 × 700 × 440mm

Advantages of KS-W102 Automatic cable cutting and stripping machine:

  1. KS-W102 Automatic cable cutting and stripping machine is designed relatively compact and user friendly, it is capable of processing awide range of wires/cables with outer diameter from 4-10mm.
  2. Fully developedtechnology plus wearing parts designing allow maximum productivity and longservice time.
  3. This Fully Automatic Cable Cutting and Stripping Machine KS-W102 excels in simplicity of operation and flexibility of application.
  4. No matterwhat the task is, such as 2-core and 3-core jacket cable cutting and strippingand core wire half/full stripping, KS-W102 carries it out with compellingprocess control and perfect processing performance.
  5. With 40 sets of programstorage function, simplified the operation process and improved workingefficiency. All you have do is to set the cutting length, outer jacketstripping length and inner core stripping length through the LCD touch screen,the machine will run fully automatically, no extra labor cost.
  6. This machinealso can be integrated in wire processing lines, for instance, an Electric WireDe-reeling can be attached to provide active wire feeding for the KS-W102, inthe aim of reducing wire tension and improve working capacity.

cắt và tuốt dây điện KS-W102


Delivery method: Nationwide.
     - Free in city. HCM
     - In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
LE DAN SERVICE TRADING CO., LTD
Address: 154/29 Pham Van Hai St., Ward 3, Tan Binh Dist., HCM City,VN
Phone: 02839914859 - 02839914860 - Hotline: 0918121454
Email : ledanco03@gmail.com

Product Other

Price: Contact us

  • Model: KS-09W
  • Manufacturer: KINGSING
  • Double wire cutting stripping and twisting machine KS-09W belongs to the latest generation of multi- function automatic stripping machines. This model is compelling in the perfectly combination they provide. With the simple, flexible touch screen, affordable price and minimal material used during setup, KS-09W has quickly become a very popular type of stripping machines worldwide.
  • KS-09W is designed to process 2 wires simultaneously, improved working efficiency by 2 times compared to ordinary ones.The feeding roller is divided into 2 types, rubber rollers and steel rollers, depend to different wires the customer process

100% Genuine

Price: Contact us

  • Code: KS-09U
  • Manufacturer: KINGSING
  • The KS-09U electrical wire stripping & bending Machine is used for cutting, plucking and bending wires and cables. The machine can bend wires with different types and change the cutting length, plucking the wire.

100% Genuine

Price: Contact us

The KS-W414 Semi-automatic wire stripping & twisting machine is especially designed for processing inner cores of multi conductor cables, it is easy to operate, for entire range of wire sizes without any blade change.

100% Genuine

Price: Contact us

  1. Model: KS-W415
  2. Manufacturer: KINGSING
  3. The KS-W415 Half stripped wire twisting machine using this semi-automatic wire twisting machine, the wire should be half stripped. It's able to twist 1-5 wires at one time, especially suitable for jacket wires and power supply cable cores, this machine has stable twisting speed and perfect twisting performance.

100% Genuine

Price: Contact us

  • Product code: KS-A230
  • Manufacturer: KINGSING
  • The KS-A230 Multi-spindle wire twisting machine is used to twist the wire, has the ability to twist two-way wire, clockwise and vice versa. The machine twisted many different types of wires, saving time and manpower.

100% Genuine

Price: Contact us

  • Model: KS-W108
  • Manufacturer: KINGSING
  • Double wire stripping and twisting machine KS-W108 is used to process 2 wires at the same time, can cut double wires, pluck and twist, cut super short wires, cut sheathed wires, in the middle of multi positions.

100% Genuine

Price: Contact us

Application of  KS-E513 wire stripping machine:

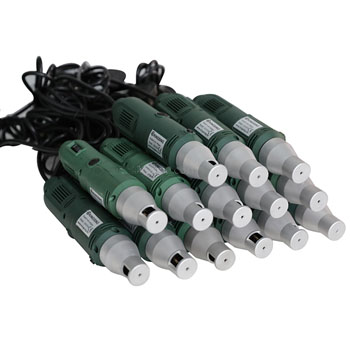

Enameled wire stripping machine KS-E513 handheld design is used to remove insulating enamel of all kinds of electrical wires. Machines for plucking different types of conductors without changing the blades. KS-E513 can adjust the speed, remove the enamel layer quickly, easy to use and convenient to move.

100% Genuine

Price: Contact us

Product code: KS-E518

Manufacturer: KINGSING

Application of wire stripping machine KS-E518:

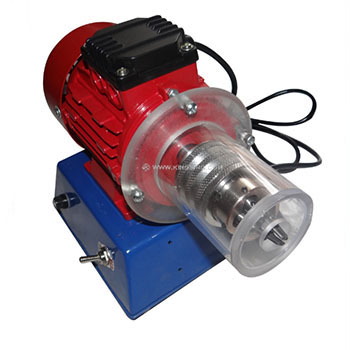

The KS-E518 enamelled wire stripping machine is for stripping enamel insulation of electric wires. Can remove any kind of hard insulating paint, ML, ... and do not damage copper wires. The enamel processing machine is of different sizes without changing the blades.

100% Genuine

Price: Contact us

Product code: KS- W115

Manufacturer: KINGSING

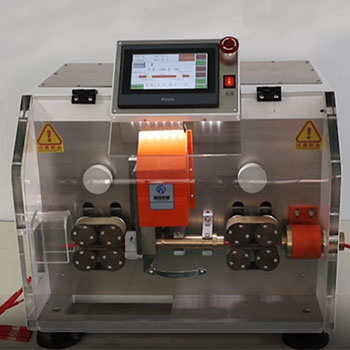

KS-W115 wire cutting and stripping machine is designed to meet the requirements of large and thick wire, which can cut the wire of OD size up to 30mm. Multi-core wire / cable stripper with high precision and adjustable cutting length through LCD touch screen.
