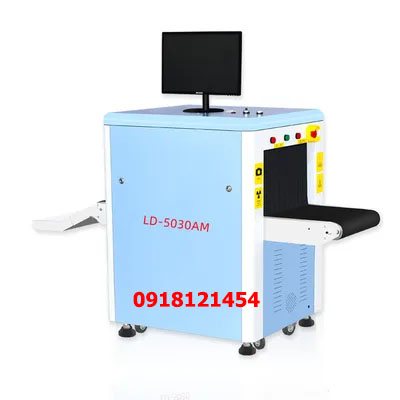

COMPACT SIZE X-RAY SECURITY DETECOR LD-5030AM.
Compact Size X-Ray Security Detector LD-5030AM is widely used for Museum, Art Museum, Express company and hotel, Events – Concerts, Marathon..etc..for security check.
PRODUCT DESCRIPTION
BASIC PARAMETERS:
-
Model No.: LD-5030AM
-
Working voltage: 220V
-
Tunner size 500 (wide) x 300 (H) mm
-
Conveyor speed: 0.22m/s (adjustable)
-
Conveyor max load: 150 kg
-
Penetration: 10 mm steel panel
-
Film safety: ISO1600
-
Dose per each inspection: < 1.5 uGy
-
Leakage dose :< 0.05 Gy/h
-
Max power consumption: 0.46 KVA
-
Noise level :< 60dB
-
Windows system with multilingual operation system
-
Energy saving design
-
Emergency stop button
-
Product size: 130(L) x72(W) x110(H) cm
-
Transport Package: Wooden
-
Package Wooden Size: 140(L) x80(W) x120(H) cm
Use environment temperature and humidity: 0 to 45 degree
Celsius/20% ~ 95% (not condensed)
Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not
condensed)
X ray generator:
-
X-ray sensor: L-style photodiode array (single energetic) detector, 12 bit
depth.
-
Generate direct: from bottom
-
Tube current: 0.4~1.2mA (adjustable)
-
Tube voltage: 80-100 KV (adjustable)
-
X-ray beam divergence angle: 60 degrees
-
Cooling style: 100% oil cooling
Image System
-
19 inch display screen with high resolution
-
Color image display 24 bit true color
-
Image enhancement to make detail more clearly
-
High/Low penetration to improve the area contrast
-
Real-time curve,Image reback and recover funtion
-
Image storage:save any images and processing continuous
Certification
CE,RoHS, FCC,ISO19001, ISO14001
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
